Front flap door which is operated with cylinders, supported by compressed gas, can be opened up to the working height of the microblasting equipment, with integrated sight window with a safety and an attrition-proof glass (double glass) in a quick change frame

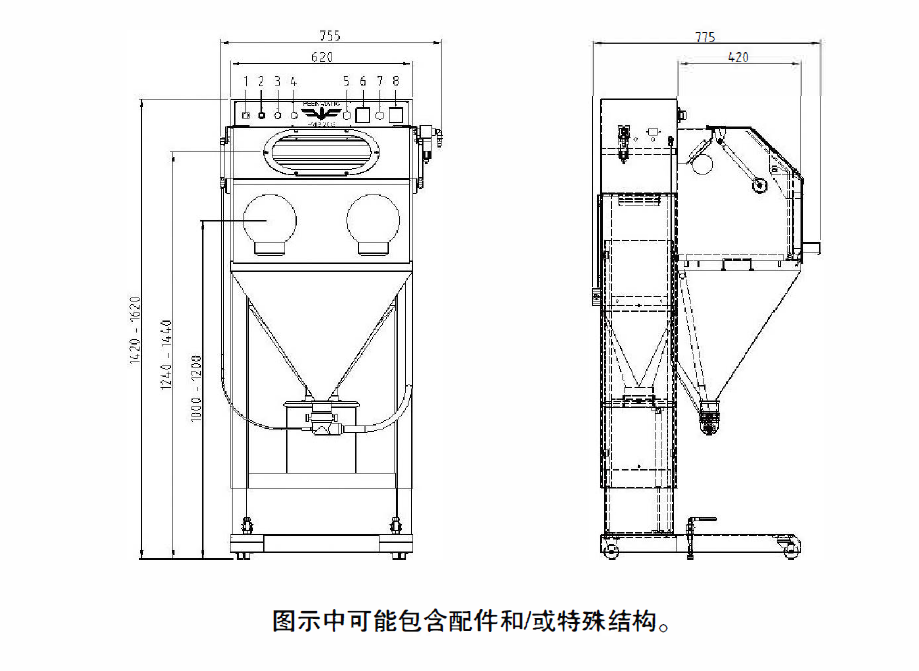

Legend: | |
Main switch | Pressure regulator for |
Control safety | Manometer for moving injector |
Potentiometer for ventilator agent re-sharpening | Pressure regulator for microblasting pistol |
Potentiometer for microblasting agent drying system | Manometer for microblasting pistol |
Standard equipment:
Front flap door which is operated with cylinders, supported by compressed gas, can be opened up to the working height of the microblasting equipment, with integrated sight window with a safety and an attrition-proof glass (double glass) in a quick change frame
Door interruption switch
Manual, hydraulic adjustment of height (maintenance-free)
2-feet system with built-in rollers, moveable, can be locked manually
Working grate made of perforated plate, one-piece, detachable, diameter of holes 5 mm
Padded sleeves and gloves, exchangeable
Microblasting pistol unit, type EF 3, with hard metal blasting nozzle HSD 5/10,
adjustable via pressure reducing valve, 0 - 8 bar, microblasting pressure reading on the manometer
Continuous drying system for microblasting agents, 50 W, electronically continuously
adjustable, including covering for heating element
Microblasting agent pre-accelerating system with moving injector, adjustable via pressure
reduction valve, 0 - 4 bar, pressure reading on the manometer
Automatic, selective microblasting agent recycling system, type SHOT SEPARATOR
Built-in high surface microfilter system with one filter cartridge with 0,64 m2 filter surface. Automatic, electro-pneumatic filter cleaning
Dust collector, made of steel
Ventilator for high surface microfilter unit, electronically continuously variable
Blow-out pistol (air-blasting pistol)
Foot actuated switch with impulse contact
Compressed-air connection, 1/4", at equipment, including oil and water separator
Control panel with all necessary switches and control elements
Main switch, on / off, with 2 keys
Illumination
Accessories:(on request)
Built-in rotary table unit, ? 350 mm, made of aluminium, manually rotatable,for workpieces up to a maximum of 50 kg
Holding device for microblasting pistol with swinging arm, height 115 mm,swivelling range 275 mm
Hour counter of microblasting time
Digital manometer(s)
Funnel vibrator
Usable space: | Width 550 x depth 350 x height 400 mm. Optimal for surface treatment of workpieces with dimensions of width 400 x depth 300 x height 200 mm |
Operating voltage: | 230 V + PE I 50/60 Hz |
Power consumption: | 125W |
Control safety: | 4AT |
Compressed-air connection: | 1/2G |
1/4G | |
0-10 bar | |
Weight: | 150KG |
