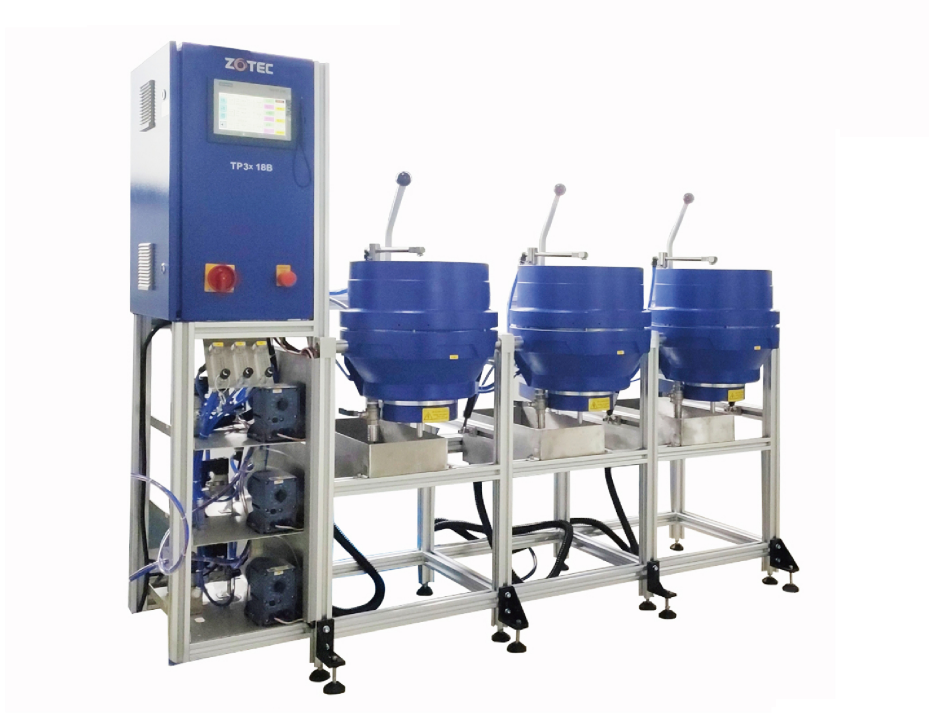

ZOTEC's newly developed 3-cylinder tray centrifugal polishing machine, with dimensions of 2650mm long * 880mm wide * 1620mm high, a total weight of 580KG, a total power of 9.0KW, and a working voltage of 380 V. The three sets of work containers can be managed by a single touch screen for easy operation. The maximum speed of pallet can be stepless speed regulation of 250 rpm, the floor space is 50% smaller than 3 sets of single-cylinder equipment, and according to the customer's demand for optional automatic turning device, automatic spraying device and abrasive product separation device.
The equipment adheres to the standard of ZOTEC equipment consistent high quality and high configuration, using Siemens frequency converter, touch screen, PLC; Prominent metering pumps: Lenze's frequency reduction motor and solenoid valves of the Yadek. Equipment through the display screen function button to control any of the three containers of different processing technology, including rotation speed, processing time, etc., can quickly achieve the adjustment of the grinding liquid ratio, automatic water, automatic drainage control, equipment operation stops or power outages caused by the shutdown system can automatically save the current state, the restoration of power supply equipment can be restored to start the original basis to continue to process the operation. The equipment can realise the editing, calling and saving of processing technology for 3 working containers respectively.
